The Little Man Computer

How can you program the "Little Man Computer", an instructional model of a computer, created in around 1965? Watch Marc Scott show you how.
5.5
This is the Little Man Computer, or LMC. It’s an instructional model of a computer created in around 1965. It models a simple Von Neumann architecture with all the basic features of a modern computer.
22.8
We can program the LMC using machine code. Machine code is normally binary numbers that represent instructions to the computer. However, with the LMC, we use denary numbers. On the left hand side of the screen, you can see the Little Man Computer’s instruction set. The Xs are for addresses in RAM. So 550, for example, would be an instruction to load the number in address 50 into the accumulator. So let’s watch a little program using machine code. I’m going to start by placing two numbers into RAM. So in address 60 I’m going to put the number 5. And in address 61 I’ll put the number 3. The program is going to start at address 0.
67.6
I’m going to begin by loading the number in address 60. So that’s 560. Next, I want to add the number in address 61 to the number in the accumulator. So that’s 161. To finish off, I’m going to store the output of the calculation. And I’m going to put it in address 62. So that’s 362. Let’s run the program and see what happens. The program counter is currently at 0. So the instruction at address 0 is fetched and the program counter incremented. The instruction 560 now needs to be decoded. The computer now knows to fetch the value at address 60. This is placed in the accumulator. It now fetches the next instruction. And the program counter is incremented again.
114.3
So the instruction 161 needs to be decoded. That means fetching the number at 61, placing it into the accumulator, and the ALU then adding them together to give an 8. The instruction address two is now fetched, which is 362. This is decoded. And the number from the accumulator is taken and stored in address 62. Finally, it goes to the instruction at address three, which is 000. This is machine code for halt. So my program stops. But it has successfully added two numbers and stored the result. Even though we only have 10 instructions in the instruction set, we can still create quite complicated programs using the Little Man Computer. Here is a program with 16 instructions used in total.
165.4
The first instruction, 901, fetches some user input. And I’m going to input the number 5. Now, this program will take about 10 minutes to run normally. So I’m going to speed it up. So we can see the final output. You’ll notice that as the program runs, the program counter sometimes goes back to an earlier number. This is an indication of branching. The program is moving forwards and then going backwards and repeating some of the earlier instructions. What it’s actually doing is taking the number that’s input and adding it to itself a certain number of times. If we look at the final output of this program, we can see that it is the number 25. So this program squares user input.
211.5
In the next few steps, we’ll take a closer look at programming with machine code and give you some challenges to program yourself.

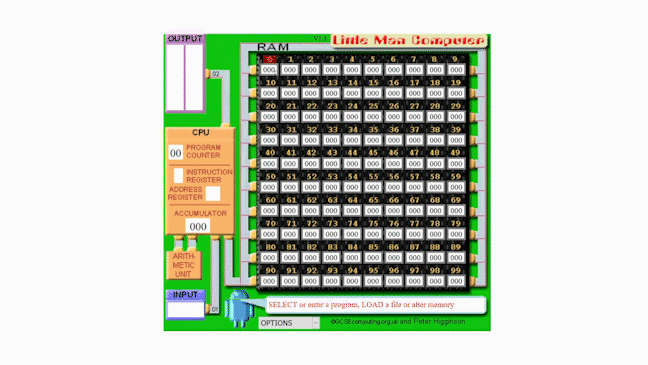

This is the ‘little man computer’, or LMC. It’s an instructional model of a computer, created in around 1965.
A set of instructions on the left. 1xx-Add. 2xx - Subtract. 3xx - Store. 5xx - Load. 6xx - Branch. 7xx - Branch if 0. 8xx - Branch if +. 901 - Input. 902 - Output. 000 - Halt. On the right hand side is a model of the Little Man Computer, with a CPU containing a Program Counter, Instruction Regisster, Address Register, Accumulator and Arithmetic Unit. This is connected to Input, Output, and RAM, the latter of which consists of 100 elements, with addresses from 0 to 99.
It models a simple Von Neumann architecture, with all the basic features of a modern computer. We can program the LMC using ‘machine code’. Machine code is normally binary numbers that represent instructions to the computer. However, with the LMC, we use denary numbers.
On the left hand side of the image, you can see the Little Man Computer’s instruction set. The x’s are for addresses in RAM. For example, 5xx means load, so 550 would be the instruction to load the number in address 50 into the accumulator.
LMC with instruction 5xx - Load and memory cell 50 both highlighted.
Here’s how we could write a little program using machine code. We’ll start by placing two numbers into RAM. In address 60, we’ll put the number 5, and in address 61, the number 3. The program itself is going to start at address 0.
Animation of the LMC with the numbers 5 and 3 being typed into addresses 60 and 61 respectively.
We want the program to begin by loading the number in address 60. So, the first instruction must be 560, which we put into address 0.
Next, we want to add the number in address 61 to the number in the accumulator. So, the second instruction is 161, which we write in address 1.
To finish off, we store the output of the calculation; let’s put it in address 62. So the instruction 362 stored in address 2.

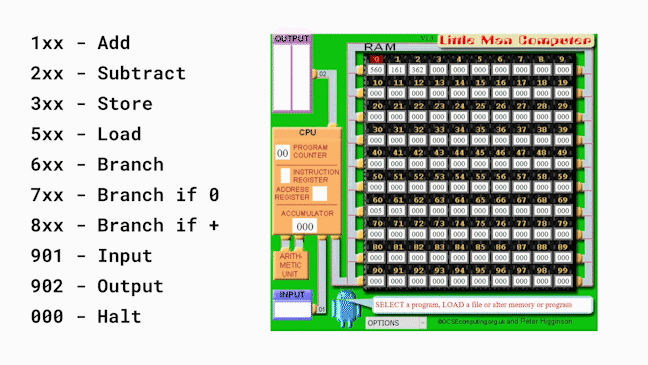

Animation of the LMC with numbers 560, 161 and 362 being typed into the first three RAM cells, with the relevant instruction (5xx - Load, 1xx - Add and 3xx - Store) highlighting as the relevant instruction is typed in.
Here’s a close up of the finished program and data.
Close up of the RAM of the LMC, with all cells equal to zero except for 0, which is filled with 560, 1 which is filled with 161, 2 which is filled with 362, 60 which is filled with 5, and 61 which is filled with 3.
Let’s run the program and see what happens…
  • The program counter is currently at 0. So the instruction at address 0 is fetched and the program counter incremented.
Animation of the instruction at address 0 being fetched, 5 being put in the instruction register and 60 in the address register, while the program counter is increased from 00 to 01.
  • By decoding the instruction 560, the computer now knows to fetch the value at address 60. This is placed in the accumulator.
Animation showing the value at addresss 60, which is 5, being fetched and copied to the accumulator.
  • It now fetches the next instruction and the program counter is incremented again, so the instruction 161 needs to be decoded.
Animation showing the instruction from address 1 being fetched, with 1 copied to the instruction register and 61 to the address register, while the program counter is increased from 01 to 02.
  • That means fetching the number at 61, placing it into the accumulator, and then sending both numbers to the ALU which adds them together. The result is 8, which is stored in the accumulator.
Animation showing the value at address 61 being fetched (which gives a value of 3), and both it and the current value of the accumulator (5) being taken to the arithmetic unit. The result of the addition, 8, is then copied to the accumulator, overwriting the previous value.

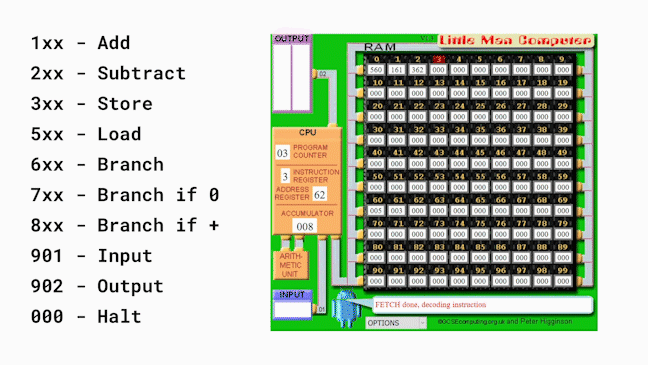

  • The instruction at address 2 is now fetched, which is 362.
Animation showing the instruction at address 2 being fetched, with 3 copied to the instruction register and 62 copied to the address register.
  • This is decoded as a store instruction, so the number from the accumulator is taken and stored in address 62.
Animation showing the number from the accumulator (8) being copied to address 62.
  • Finally, the computer goes to the instruction at address 3, which is 000. This is the machine code for ‘halt’, so the program stops. It has successfully added two numbers and stored the result.
Animation showing the instruction at address 3 being fetched, with 0 copied to the instruction register and 00 copied to the address register. The program then halts.
Even though the Little Man Computer only has ten instructions in its instruction set, we can still create quite complicated programs for it.
Here is a program with sixteen instructions used in total.

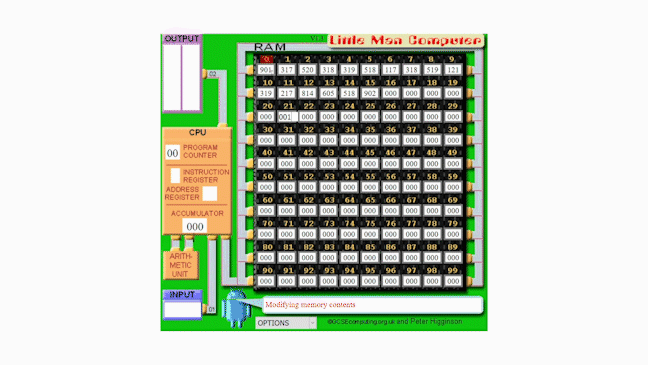

A new program being entered into the LMC, with instructions being written into each of the RAM addresses from 0 to 15.
The first instruction 9-01, fetches some input from the user. I’m going to input the number 5.
Animation showing the instruction at address 0 being fetched, with the 9 copied to the instruction register and 01 copied to the address register, while the program counter is increased by 1 from 00 to 01. The text box at the bottom asks for some input, and the number 5 is typed in.
This program would take about 10 minutes to run at the speed of the simulations above, so instead, here is a speeded-up version so that you can see the final output.
An animation showing the entire program running quickly, with the program counter sometimes jumping back to 05 having reached 14. The number 25 is output by the program.
You’ll notice that as the program runs, the program counter sometimes goes back to an earlier number. This is an example of branching. Sometimes an instruction changes the program counter, so the program goes back to an earlier instruction. This enables a sequence of instructions to be repeated a number of times.
If we look at the final output of this program, we can see that the number is 25. In fact, this program squares the number that was input by the user. As I input 5, the final output is 5×5 = 25.
In the next few steps, we’ll take a closer look at programming the little man computer and give you some challenges to program yourself.
