Biology toolbox: how do we know neurotransmitter is in packets?

Biology toolbox: Electrophysiology
Packets of neurotransmitter
Synaptic transmission
© Gareth Evans and Sangeeta Chawla

The observation of neurons as individual entities with junctions (or “synapses”) raised the question: How do neurons communicate?

As early as the 1870s Emil du Bois-Reymond proposed chemical communication through substances released at nerve endings. The first neurotransmitters were discovered in the early twentieth century, albeit outside the brain. In 1921 Otto Loewi showed that stimulating a nerve in the frog heart could slow down the heart beat. Loewi showed that this was because the nerve released a chemical, which was later isolated and characterised by Henry Dale and shown to be acetylcholine, a neurotransmitter used at nerve-muscle junctions and in the brain. Loewi and Dale shared the Nobel Prize in 1936 for their discoveries relating to chemical transmission of nerve impulses. Each synapse releases only one type of neurotransmitter. Although you might have heard of dopamine or acetylcholine, the most common neurotransmitter in the brain is glutamate, which is also an amino acid.

Release in packets

Just as the nerve-muscle synapse in the heart led to the discovery of neurotransmitters, the neuromuscular junction comprising of motor neurons and skeletal muscle in the frog leg revealed another fundamental property of chemical synaptic transmission. In 1952 Paul Fatt and Bernard Katz showed that neurotransmitter is released in packets (also called quantal release). You’ve probably heard of quantum physics, where a quantum (plural quanta) is the minimum amount of a physical entity (ie. matter or energy is in discrete packets).

Fatt and Katz were measuring the membrane excitation produced in muscle by stimulating motor nerves. They noticed spontaneous responses in the muscle measured as a change in membrane potential in the absence of nerve stimulation. They called these spontaneous electrical changes miniature end plate potentials. Fatt and Katz noted that the miniature end plate potentials were always the same size (0.5 mV). Following this piece of work, in 1954 Castillo and Katz stimulated nerve fibers of motor neurons to generate an electrical signal resembling an action potential and then measured muscle end plate potential. They noted that the muscle end plate potential was proportional to the amount of nerve fiber stimulation and importantly, the amplitude of the evoked end plate potential was always an integral multiple of the miniature end plate potential (0.5 mV). One explanation for these observations is the release of neurotransmitter in discrete packets, each generating a potential of 0.5 mV.

What are the packets?

The structural basis for quantal release of neurotransmitters came from electron microscopy studies by George Palade in 1955 who observed vesicles at the neuronal synapse. This led to the idea that neurotransmitters are packaged in vesicles and each vesicle contains a fixed amount of neurotransmitter. Quantal release can then be explained if each vesicle releases its entire content during synaptic transmission- i.e. release is all or none. Direct evidence for this came from the development of a new technique that captured a vesicle in the act of discharging its contents.

A synapse

Figure 1. Electron micrograph showing vesicles containing neurotransmitter

Capturing snapshots of synaptic transmission

In the 1970s the ‘freeze-fracture’ technique was developed to better understand membrane structure. This technique splits frozen membranes apart at the junction of the two layers of phospholipids (remember, membranes are made up of phospholipid bilayers). The split halves are then coated with metal and carbon to make a replica that captures the contours of the split membranes. The replica is then examined by electron microscopy. John Heuser and Thomas Reese used this technique on the presynaptic membrane. They froze tissue at defined intervals after stimulation of the presynaptic neuron and noted the appearance of dents in the membrane. These dents were transient and not observed after neurotransmitter release allowing Reese and Heuser to conclude that they were vesicles releasing their neurotransmitter. Freeze fracture not only caught a vesicle in the act of exocytosis but also captured other structures and snapshots of various steps in the vesicle cycle.


Figure 2. Freeze-fracture electron microscopy images of synaptic vesicle fusion. The indentations seen on the left (and magnified in the insets on the right) are synaptic vesicles fusing with the presynaptic plasma membrane. The bottom inset shows proteins that have been coloured in yellow that appear to be proteins associated with a docked vesicle. Image taken from Zampighi et al. (2014) PLoS ONE 9(6): e100710. Scale bar = 25 nm.

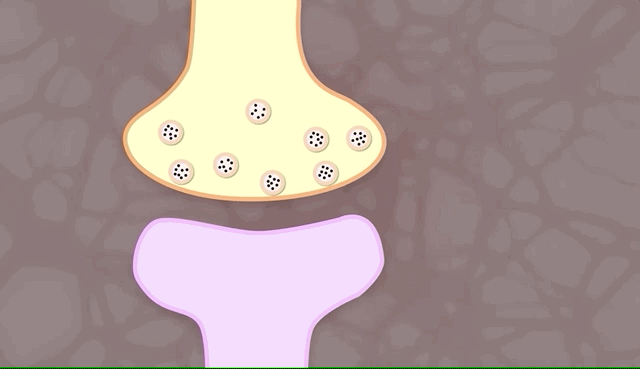

An animation showing how a synaptic vesicle deliver its neurotransmitter across the synapse. Some synaptic vesicles are positioned near the presynaptic membrane awaiting a signal. When an electrical signal arrives, the membrane depolarisation leads to the opening of voltage-gated calcium channels in the presynaptic membrane. An influx of calcium ions into the cytoplasm of the presynapse causes the vesicle membrane to fuse with the plasma membrane and release the neurotransmitter into the synaptic cleft. The vesicle membrane is now continuous with the presynaptic membrane and has to be recycled so that the vesicle can be refilled with neurotransmitter molecules. It also shows the neurotransmitter as it diffuses across the synaptic cleft. The neurotransmitter binds specific receptors at the postsynaptic membrane. The receptors then open and allow ion influx, causing a potential that, when summed with potentials from other synapses can cause the postsynaptic neuron to fire an action potential.

Animation of synaptic transmission

Watching events live

In addition to vesicles, Reese and Heuser observed structures that they believed to be Ca2+channels in their freeze-fracture EM. They also noted that some vesicles were situated close to these ‘Ca2+channels’. Their observations were consistent with earlier work by Katz and Miledi who had used electrophysiological techniques to measure Ca2+ currents in presynaptic nerve terminals. We now know that Ca2+ influx through voltage-gated channels couples electrical excitation of the presynaptic membrane to neurotransmitter release. Today we can visualise this in live cells non-invasively using special dyes that glow only when bound to Ca2+ions.

At the bench: Illuminating synaptic transmission

Fluorescent dyes have allowed neuroscientists to study the events of synaptic transmission. In this video neurons have been loaded with a Ca2+ -sensitive dye. When the neurons are stimulated the dye glows brighter as Ca2+ increases. As the increase in synaptic Ca2+ triggers neurotransmitter release it allows researchers to directly track synaptic transmission. Dr. Sangeeta Chawla and Dr. Gareth Evans and their teams at the Department of Biology, University of York are using these dyes to investigate how synaptic transmission changes during neuronal development, learning and in neurodegenerative conditions.

This is an additional video, hosted on YouTube.

© Gareth Evans and Sangeeta Chawla
